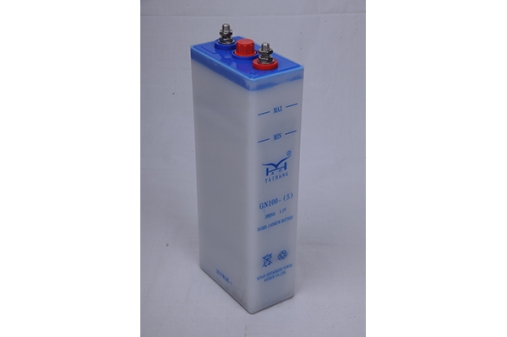

Nickel Cadmium Battery GN100-(5)Back

The GN100-(5) battery is specially designed for the particular use of railway locomotives and vehicles. Its performance can not only meet the requirements of locomotives and internal combustion engines, but also meet the use of electric locomotives a

1. Its excellent electrical performance make it possible to use in-40~+40℃

2. long service time, firm structure, resistance to over charging, resistance to over discharge

3.low loss of self discharge, high reliability, easy maintenance


Product parameter

                    Nominal voltage(V)

                    1.2V

                    Nominal capacity(0.2ItA)

                    100Ah

   Battery size

                    long

                    139

                    width

                    79

                    height

                    334

                    Overall Height

                    362

                    Mass

                    6.5

                 Terminal

                    M16





                    Capacity

                    (25℃)

                    10 hours rate

                    110%

                    5 hours rate

                    100%

                    3 hours rate

                    60%





                    Internal Resistance(25℃)

                    Full Charge

                    10mΩ

                   The discharge capacity of the battery in different temperature(25℃)

                    40℃

                    95%

                    25℃

                    100%

                    0℃

                    87%

                    -18℃

                    50%

The capacity after self discharge(25℃)

                    28天

                    80%

Cooperative partner

  • Nickel Cadmium Battery GN100-(5)

Application fields

It can be used in many aspects such as railway vehicle,  communication base station, electric appliances, telecommunications, lighting, power device of standby power supply and dc operation power, as well as the oil machine, dc motor startup power source, means of transport of the dc power supply, etc.
